More examples with Pyphot#
ℹ️ This notebook is based on Pyphot version 2.0.0.
%matplotlib inline
import matplotlib.pyplot as plt
import numpy as np
# Handle import for pyphot and path
import sys
try:
import pyphot
except ImportError:
sys.path.append("../")
import pyphot
Basic usage#

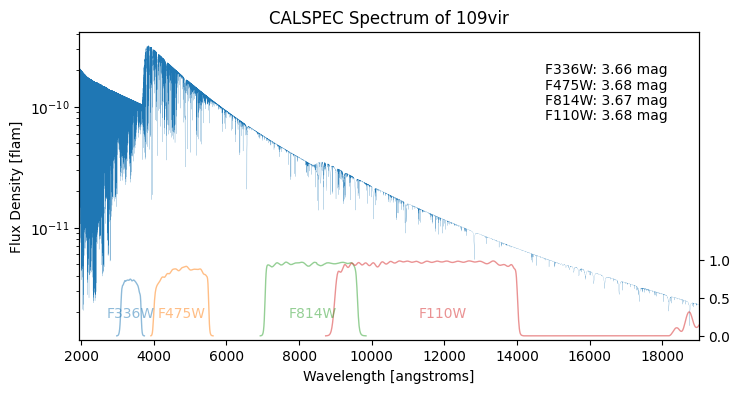

This example reads a spectrum from a fits file and calculate some photometry using units to the calculations. We retrieve the data directly from the CDBS archive.
# Example data from CalSpec CDBS archive
# 109 Vir is A0 V star
url = "https://archive.stsci.edu/hlsps/reference-atlases/cdbs/current_calspec/109vir_mod_005.fits"
from astropy.io import fits
from pyphot import config
import numpy as np
from pyphot import get_library
units = config.units
# get the spectrum
with fits.open(url) as hdul:
data = hdul[1].data
wavelength = data['WAVELENGTH']
wavelength_units = hdul[1].header['TUNIT1'].lower()
flux = data['FLUX']
flux_units = hdul[1].header['TUNIT2'].lower()
target_name = hdul[0].header['TARGETID'].strip()
# compute some photometry
lib = pyphot.get_library()
flist = lib['HST_WFC3_F336W', 'HST_WFC3_F475W', 'HST_WFC3_F814W', 'HST_WFC3_F110W']
sed = {}
minλ, maxλ = np.inf, 0
for f in flist:
minλ = min(minλ, np.nanmin(f.wavelength.value))
maxλ = max(maxλ, np.nanmax(f.wavelength.value))
sed[f.name] = -2.5 * np.log10(f.get_flux(wavelength, flux) / f.Vega_zero_flux)
# make a plot
plt.figure(figsize=(8, 4))
λ, fλ = wavelength * units.U(wavelength_units), flux * units.U(flux_units)
ind = np.where((λ.value >= minλ) & (λ.value <= maxλ))
plt.semilogy(λ[ind], fλ[ind], lw=0.1)
plt.xlabel(f"Wavelength [{λ.unit}]")
plt.ylabel(f"Flux Density [{fλ.unit}]")
plt.title(f"CALSPEC Spectrum of {target_name}")
plt.xlim(minλ, maxλ)
for e, (name, m) in enumerate(sed.items()):
name = name.split('_')[-1]
plt.text(0.95, 0.9 - e * 0.05, f"{name}: {m:.2f} mag", transform=plt.gca().transAxes, va='top', ha='right')
ax = plt.twinx()
for f in flist:
ind = f.transmit > 1e-3
lines = ax.plot(f.wavelength[ind], f.transmit[ind], label=f.name, lw=1, alpha=0.5)
ax.text(f.wavelength[ind].mean().value, 0.2, f.name.split('_')[-1], va='bottom', ha='center', alpha=0.5, color=lines[0].get_color())
ax.set_ylim(-0.05, 4)
ax.set_yticks([0, 0.5, 1.0])
Number of photons through a given passband#
The following examples gives the number of photons that a passband would collect for the Sun at 10 pc.
from pyphot import Sun
from pyphot import config
from pyphot import get_library
units = config.units
lib = get_library()
vband = lib['GROUND_JOHNSON_V']
with Sun(distance=10 * units.U('pc')) as v:
print(vband.get_Nphotons(v.wavelength, v.flux))
11.978459664247094 ph / (Angstrom s cm2)
The result is given in photon (ph) density.
Defining your own passband#
It is not uncommon to want to define your own passbands for specific applications or to use a passband that is not included in the libraries or even not yet public. Pyphot makes it easy to define your own passbands.
Let’s suppose you’re interested in defining bandpasses (here tophat functions) in Pyphot to determine the flux/magnitude in regions. This may be useful to determine the S/N ratio or integrated flux over a given wavelength range.
from pyphot import config, Filter
import numpy as np
units = config.units
wave = np.array([4499, 4500, 4700, 4701]) * units.U('AA') # AA or Angstrom, angstrom
transmit = np.array([0., 1., 1., 0.])
tophat = Filter(wave, transmit, name='tophat', dtype='photon')
# flux_tophat = tophat.get_flux(wavelength, flux)
tophat.info()
Filter object information:
name: tophat
detector type: photon
wavelength units: Angstrom
central wavelength: 4600.000000 Angstrom
pivot wavelength: 4598.912915 Angstrom
effective wavelength: 4598.652110 Angstrom
photon wavelength: 4599.388021 Angstrom
minimum wavelength: 4500.000000 Angstrom
maximum wavelength: 4700.000000 Angstrom
norm: 201.000000
effective width: 201.000000 Angstrom
fullwidth half-max: 201.000000 Angstrom
definition contains 4 points
Zeropoints
Vega: 20.546119 mag,
6.0471716338210665e-09 erg / (Angstrom s cm2),
4266.207392559406 Jy
1400.5107759682307 ph / (Angstrom s cm2)
AB: 20.721224 mag,
5.1464804957629885e-09 erg / (Angstrom s cm2),
3630.780547701009 Jy
ST: 21.100000 mag,
3.6307805477010028e-09 erg / (Angstrom s cm2),
2561.4723297634187 Jy
Tip
The transmission is unitless. Its scaling factor will not affect the flux/magnitude calculations as these are implicitly normalizing the passband (see the equations) but will affect the number of photons.
Flux density units#
Photometry calculations are sensitive to the units of the input spectra for the wavelength and spectral density. Internally Pyphot can deal with a lot of different units, as long as these are wavelength based (i.e. not frequencies).
Photometry expects the spectral density in flam, i.e., :math:erg/s/cm^2/\unicode{x212B}, any other similar units will be converted internally, e.g. \(W/m^2/mn\). But when you deal with frequencies (e.g., fnu), you need to convert these to flam first.
if you use the Astropy units, you can use it to convert flux densities from frequencies to flam
from astropy import units as u
flux = u.Quantity(spec['flux']).to(u.Unit('flam')),
equivalencies=u.spectral_density(u.Quantity(spec['wave']))
)
Other unit systems can be used but may be more tedious to convert.
Tip
When using Astropy units with pyphot (default), Astropy automagically inherits the custom unit flam defined in pyphot.
Make sure to use u.Unit('flam') and not u.flam which is not defined in Astropy.
from astropy import units as u
# astropy Unit(...) gives a unit object, 1 * Unit(...) is a quantity.
# Unit(...).to(...) gives a scaling factor (float)
# 1 * Unit(...).to(...) gives another quantity which has units.
(1 * u.Unit('flam')).to('W * m ** (-2) * nm **(-1)')
Dust attenuated SED modeling#
A complete tutorial can be found online. It requires a bit more than just Pyphot, but it demonstrates how to integrate Pyphot into larger projects.
import pyphot
# get the internal default library of passbands filters
lib = pyphot.get_library()
print("Library contains: ", len(lib), " filters")
# find all filter names that relates to IRAC
# and print some info
f = lib.find("irac")
passbands = lib.load_filters(f) # or lib[f]
passbands[0].info(show_zeropoints=True)
Library contains: 271 filters
Filter object information:
name: SPITZER_IRAC_36
detector type: photon
wavelength units: AA
central wavelength: 35634.293911 Angstrom
pivot wavelength: 35569.270678 Angstrom
effective wavelength: 35134.320010 Angstrom
photon wavelength: 35263.773954 Angstrom
minimum wavelength: 31310.000000 Angstrom
maximum wavelength: 39740.000000 Angstrom
norm: 3181.966405
effective width: 6848.829972 Angstrom
fullwidth half-max: 7430.000000 Angstrom
definition contains 505 points
Zeropoints
Vega: 27.948397 mag,
6.616697169302651e-12 erg / (Angstrom s cm2),
279.2354008243633 Jy
5.5117355961901255 ph / (Angstrom s cm2)
AB: 25.163323 mag,
8.603413213872212e-11 erg / (Angstrom s cm2),
3630.7805477009956 Jy
ST: 21.100000 mag,
3.6307805477010028e-09 erg / (Angstrom s cm2),
153224.8545764173 Jy
Unit backends in pyphot#
Pyphot supports multiple unit backends through its pyphot.unit_adapter module. By default, it uses Astropy units, but you can also use Pint.
All adapters must implement the UnitsAdapter interface, which defines the following methods:
UnitsAdapter.U(): queries the unit registry.UnitsAdapter.Q(): make sure the returned object is a quantity, i.e. a value with unit (e.g. astropy differs betweenU("kg")andQ("kg") = 1. * U("kg"))
For source typing reasons, adapters also override a few methods:
UnitsAdapter.has_unit: checks if the object has a unit.UnitsAdapter.val_in_unit: returns the value of the quantity in the specified unit or forces a default unit if not specified.
When using config.units it refers to the global adapter instance, which can be changed at runtime by setting pyphot.config.set_units_backend to another adapter instance.
API details
For more details, see the unit_adapter module documentation.
from pyphot import Vega
vega = Vega()
wavelength_angstrom = vega.wavelength
wavelength_nm = vega.wavelength.to('nm')
flux_flam = vega.flux
flux_other = flux_flam.to('W / (m**2 * nm)')
wavelength_angstrom, wavelength_nm, flux_flam, flux_other
(<Quantity [9.00452026e+02, 9.01354004e+02, 9.02257996e+02, ...,
2.99353200e+06, 2.99653275e+06, 2.99953700e+06] Angstrom>,
<Quantity [9.00452026e+01, 9.01354004e+01, 9.02257996e+01, ...,
2.99353200e+05, 2.99653275e+05, 2.99953700e+05] nm>,
<Quantity [1.23800003e-17, 1.67599994e-17, 1.78000003e-17, ...,
1.40099994e-19, 1.38700004e-19, 1.26499994e-19] flam>,
<Quantity [1.23800003e-19, 1.67599994e-19, 1.78000003e-19, ...,
1.40099994e-21, 1.38700004e-21, 1.26499994e-21] W / (nm m2)>)
