dustapprox package

dustapprox package#

Subpackages#

Submodules#

dustapprox.astropy_units module#

Declare missing photometric and spectral units for use with astropy.

class Quantity[source]#

Bases: ndarray

A ~astropy.units.Quantity represents a number with some associated unit.

Parameters:

value (number, ~numpy.ndarray, ~astropy.units.Quantity (sequence), or str) – The numerical value of this quantity in the units given by unit. If a Quantity or sequence of them (or any other valid object with a unit attribute), creates a new Quantity object, converting to unit units as needed. If a string, it is converted to a number or Quantity, depending on whether a unit is present.
unit (unit-like) – An object that represents the unit associated with the input value. Must be an ~astropy.units.UnitBase object or a string parseable by the units package.
dtype (dtype, optional) – The dtype of the resulting Numpy array or scalar that will hold the value. If not provided, it is determined from the input, except that any integer and (non-Quantity) object inputs are converted to float by default. If None, the normal numpy.dtype introspection is used, e.g. preventing upcasting of integers.
copy (bool, optional) – If True (default), then the value is copied. Otherwise, a copy will only be made if __array__ returns a copy, if value is a nested sequence, or if a copy is needed to satisfy an explicitly given dtype. (The False option is intended mostly for internal use, to speed up initialization where a copy is known to have been made. Use with care.)
order ({'C', 'F', 'A'}, optional) – Specify the order of the array. As in ~numpy.array. This parameter is ignored if the input is a Quantity and copy=False.
subok (bool, optional) – If False (default), the returned array will be forced to be a Quantity. Otherwise, Quantity subclasses will be passed through, or a subclass appropriate for the unit will be used (such as ~astropy.units.Dex for u.dex(u.AA)).
ndmin (int, optional) – Specifies the minimum number of dimensions that the resulting array should have. Ones will be prepended to the shape as needed to meet this requirement. This parameter is ignored if the input is a Quantity and copy=False.

Raises:

TypeError – If the value provided is not a Python numeric type.
TypeError – If the unit provided is not either a Unit object or a parseable string unit.

Notes

Quantities can also be created by multiplying a number or array with a Unit. See https://docs.astropy.org/en/latest/units/

Unless the dtype argument is explicitly specified, integer or (non-Quantity) object inputs are converted to float by default.

static __new__(cls, value, unit=None, dtype=<class 'numpy.inexact'>, copy=True, order=None, subok=False, ndmin=0)[source]#

Parameters:

cls (type[Self])
value (astropy.units.Quantity | Buffer | _SupportsArray[dtype[Any]] | _NestedSequence[_SupportsArray[dtype[Any]]] | complex | bytes | str | _NestedSequence[complex | bytes | str])

Return type:

Self

all(axis=None, out=None)[source]#

any(axis=None, out=None)[source]#

argmax(axis=None, out=None, *, keepdims=False)[source]#

argmin(axis=None, out=None, *, keepdims=False)[source]#

argsort(axis=-1, kind=None, order=None, *, stable=None)[source]#

property cgs#: Returns a copy of the current Quantity instance with CGS units. The value of the resulting object will be scaled.

choose(choices, out=None, mode='raise')[source]#

decompose(bases=())[source]#

Generates a new Quantity with the units decomposed. Decomposed units have only irreducible units in them (see astropy.units.UnitBase.decompose).

Parameters:: bases (sequence of ~astropy.units.UnitBase, optional) – The bases to decompose into. When not provided, decomposes down to any irreducible units. When provided, the decomposed result will only contain the given units. This will raises a ~astropy.units.UnitsError if it’s not possible to do so.
Returns:: newq – A new object equal to this quantity with units decomposed.
Return type:: ~astropy.units.Quantity

diff(n=1, axis=-1)[source]#

dot(b, out=None)[source]#

dump(file)[source]#: Not implemented, use .value.dump() instead.

dumps()[source]#: Not implemented, use .value.dumps() instead.

ediff1d(to_end=None, to_begin=None)[source]#

property equivalencies#: A list of equivalencies that will be applied by default during unit conversions.

fill(value)[source]#

property flat#

A 1-D iterator over the Quantity array.

This returns a QuantityIterator instance, which behaves the same as the ~numpy.flatiter instance returned by ~numpy.ndarray.flat, and is similar to, but not a subclass of, Python’s built-in iterator object.

info#: Container for meta information like name, description, format. This is required when the object is used as a mixin column within a table, but can be used as a general way to store meta information.

insert(obj, values, axis=None)[source]#

Insert values along the given axis before the given indices and return a new ~astropy.units.Quantity object.

This is a thin wrapper around the numpy.insert function.

Parameters:

obj (int, slice or sequence of int) – Object that defines the index or indices before which values is inserted.
values (array-like) – Values to insert. If the type of values is different from that of quantity, values is converted to the matching type. values should be shaped so that it can be broadcast appropriately The unit of values must be consistent with this quantity.
axis (int, optional) – Axis along which to insert values. If axis is None then the quantity array is flattened before insertion.

Returns:

out – A copy of quantity with values inserted. Note that the insertion does not occur in-place: a new quantity array is returned.

Return type:

~astropy.units.Quantity

Examples

>>> import astropy.units as u
>>> q = [1, 2] * u.m
>>> q.insert(0, 50 * u.cm)
<Quantity [ 0.5,  1.,  2.] m>

>>> q = [[1, 2], [3, 4]] * u.m
>>> q.insert(1, [10, 20] * u.m, axis=0)
<Quantity [[  1.,  2.],
           [ 10., 20.],
           [  3.,  4.]] m>

>>> q.insert(1, 10 * u.m, axis=1)
<Quantity [[  1., 10.,  2.],
           [  3., 10.,  4.]] m>

property isscalar#: True if the value of this quantity is a scalar, or False if it is an array-like object.

Note

This is subtly different from numpy.isscalar in that numpy.isscalar returns False for a zero-dimensional array (e.g. np.array(1)), while this is True for quantities, since quantities cannot represent true numpy scalars.

item(*args)[source]#

Copy an element of an array to a scalar Quantity and return it.

Like item() except that it always returns a Quantity, not a Python scalar.

mean(axis=None, dtype=None, out=None, keepdims=False, *, where=True)[source]#

put(indices, values, mode='raise')[source]#

round(decimals=0, out=None)[source]#

searchsorted(v, *args, **kwargs)[source]#

property si#: Returns a copy of the current Quantity instance with SI units. The value of the resulting object will be scaled.

std(axis=None, dtype=None, out=None, ddof=0, keepdims=False, *, where=True)[source]#

take(indices, axis=None, out=None, mode='raise')[source]#

to(unit, equivalencies=[], copy=True)[source]#

Return a new ~astropy.units.Quantity object with the specified unit.

Parameters:

unit (unit-like) – An object that represents the unit to convert to. Must be an ~astropy.units.UnitBase object or a string parseable by the ~astropy.units package.
equivalencies (list of tuple) – A list of equivalence pairs to try if the units are not directly convertible. See astropy:unit_equivalencies. If not provided or [], class default equivalencies will be used (none for ~astropy.units.Quantity, but may be set for subclasses) If None, no equivalencies will be applied at all, not even any set globally or within a context.
copy (bool, optional) – If True (default), then the value is copied. Otherwise, a copy will only be made if necessary.

dustapprox.extinction module#

Dust Extinction curves#

The observations show a wide range of dust column normalized extinction curves, \(A(\lambda) / A(V)\). This package provides a common interface to the dust_extinction package which includes commonly used extinction curves.

Note

This module is able to handle values with units from pyphot.astropy (intefaced to this package) and astropy. We recommend the users to provide units in their inputs.

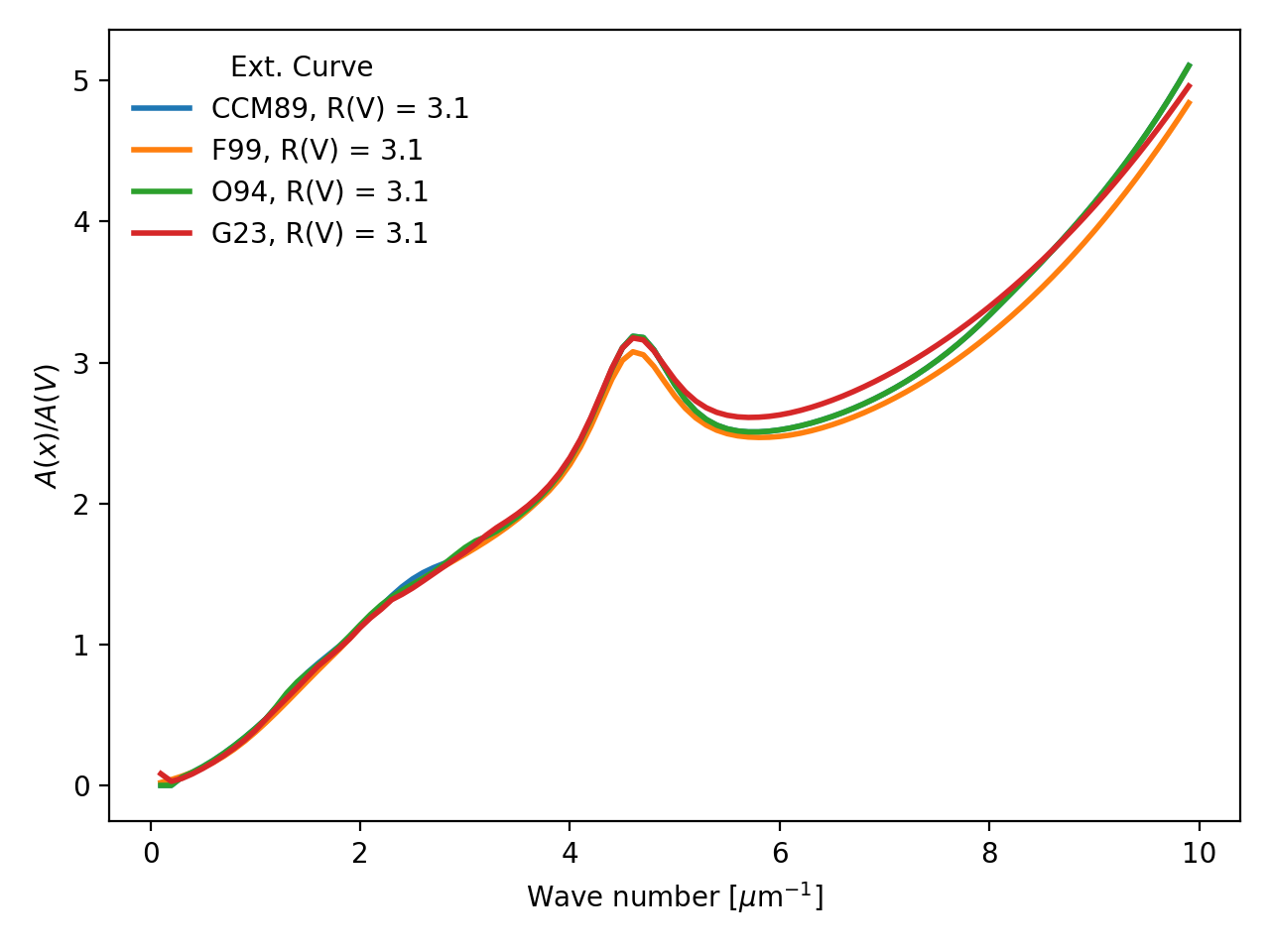

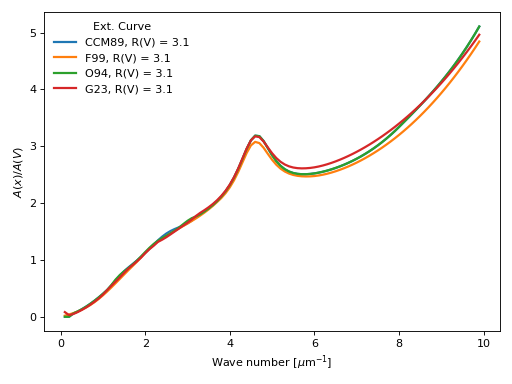

Example of comparing extinction curves

import numpy as np
import matplotlib.pyplot as plt
import astropy.units as u

from dustapprox.extinction import evaluate_extinction_model

#define the wave numbers
x = np.arange(0.1, 10, 0.1)    # in microns^{-1}
λ = 1. / x * u.micron

curves = ["CCM89", "F99", "O94", "G23"]
R0 = 3.1

for name in curves:
    values = evaluate_extinction_model(name, λ, A0=1.0, R0=R0)
    plt.plot(x, values, label=f'{name:s}, R(V) = {R0:0.1f}', lw=2)
plt.xlabel(r'Wave number [$\mu$m$^{-1}$]')
plt.ylabel(r'$A(x)/A(V)$')
plt.legend(loc='upper left', frameon=False, title='Ext. Curve')
plt.tight_layout()
plt.show()

(Source code, png, hires.png, pdf)

class BaseExtRvModel[source]#

Bases: BaseExtModel

Base Extinction R(V)-dependent Model. Do not use directly.

Rv = Parameter('Rv', value=3.1)#

param_names = ('Rv',)#

Names of the parameters that describe models of this type.

The parameters in this tuple are in the same order they should be passed in when initializing a model of a specific type. Some types of models, such as polynomial models, have a different number of parameters depending on some other property of the model, such as the degree.

When defining a custom model class the value of this attribute is automatically set by the ~astropy.modeling.Parameter attributes defined in the class body.

evaluate_extinction_model(name, λ, A0, R0, *, extrapolate=True)[source]#

Evaluate an extinction model from dust_extinction by name at given wavelengths

This function is a quick interface that makes sure the wavelength input is properly converted to the expected units and that the extinction model is properly instantiated.

Note: dust_extinction assumes evaluation at wavenumbers, here in wavelengths.

Parameters:

name (str or BaseExtRvModel) – Name of the extinction model from dust_extinction.parameter_averages or an instance of dust_extinction.parameter_averages.BaseExtRvModel
λ (array-like or Quantity) – Wavelength(s) at which to evaluate the extinction model
A0 (float) – Initial amplitude of the extinction curve
R0 (float) – Initial slope of the extinction curve
extrapolate (bool) – Whether to allow extrapolation beyond the model’s valid range in R0

Returns:

Evaluated extinction curve values at the given wavelengths

Return type:

np.ndarray

get_extinction_model(name)[source]#

Get an extinction model from dust_extinction by name

Parameters:: name (str or BaseExtRvModel) – Name of the extinction model from dust_extinction.parameter_averages or an instance of dust_extinction.parameter_averages.BaseExtRvModel
Returns:: Instance of the requested extinction model
Return type:: BaseExtRvModel

dustapprox.legacy_extinction module#

Dust Extinction curves (legacy module)#

The observations show a wide range of dust column normalized extinction curves, \(A(\lambda) / A(V)\). This package provides a common interface to many commonly used extinction curves.

Important

This is a legacy module kept for backward compatibility. New code should use dustapprox.extinction instead which is based on the dust_extinction package.

Note

This module is able to handle values with units from pyphot.astropy (intefaced to this package) and astropy. We recommend the users to provide units in their inputs.

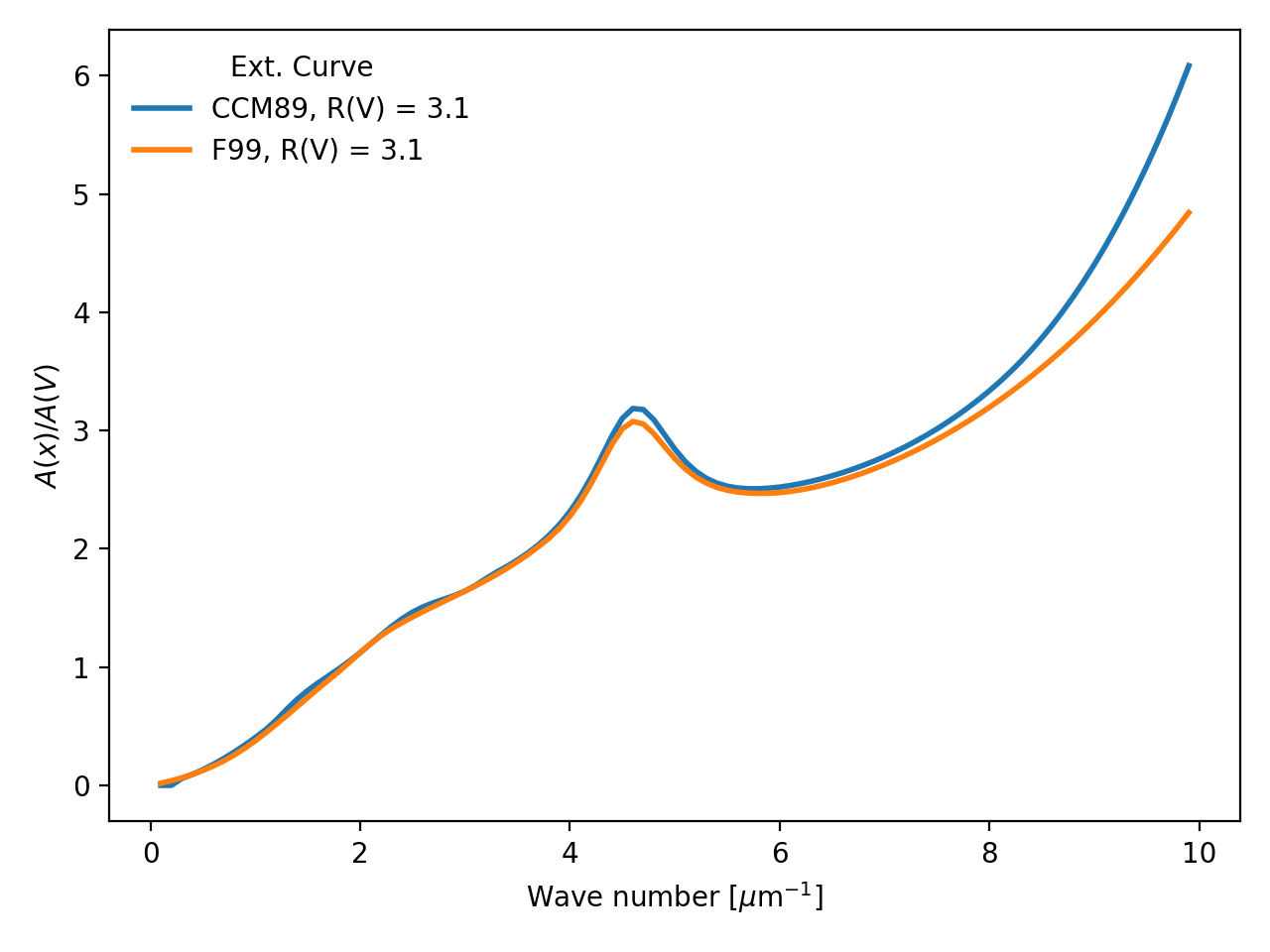

Example of comparing extinction curves

import numpy as np
import matplotlib.pyplot as plt
import astropy.units as u

from dustapprox.legacy_extinction import CCM89, F99

#define the wave numbers
x = np.arange(0.1, 10, 0.1)    # in microns^{-1}
lamb = 1. / x * u.micron

curves = [CCM89(), F99()]
Rv = 3.1

for c in curves:
    name = c.name
    plt.plot(x, c(lamb, Rv=Rv), label=f'{name:s}, R(V) = {Rv:0.1f}', lw=2)
plt.xlabel(r'Wave number [$\mu$m$^{-1}$]')
plt.ylabel(r'$A(x)/A(V)$')
plt.legend(loc='upper left', frameon=False, title='Ext. Curve')
plt.tight_layout()
plt.show()

(Source code, png, hires.png, pdf)

class CCM89[source]#

Bases: ExtinctionLaw

Cardelli, Clayton, & Mathis (1989) Milky Way R(V) dependent model.

from Cardelli, Clayton, and Mathis (1989, ApJ, 345, 245)

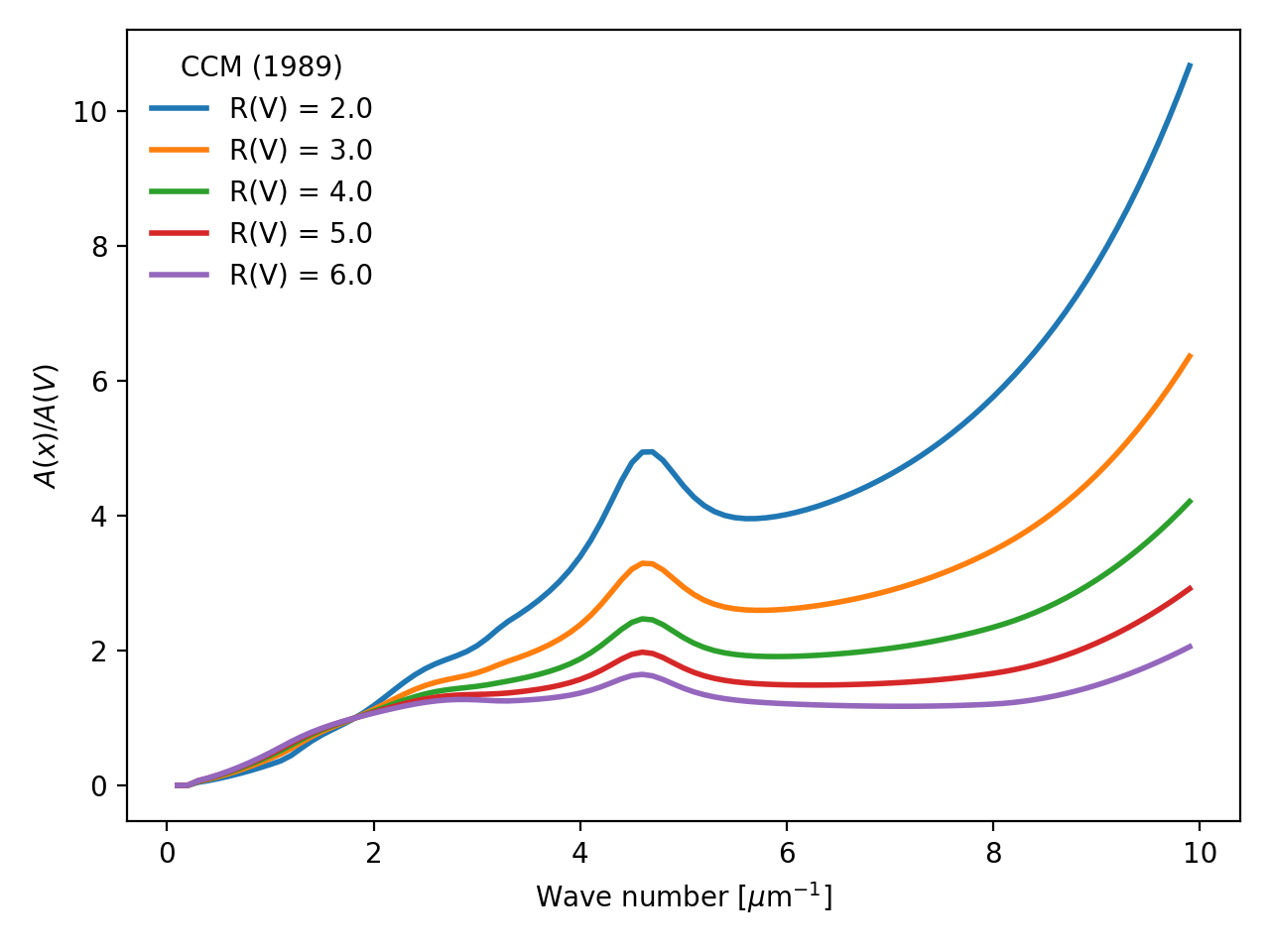

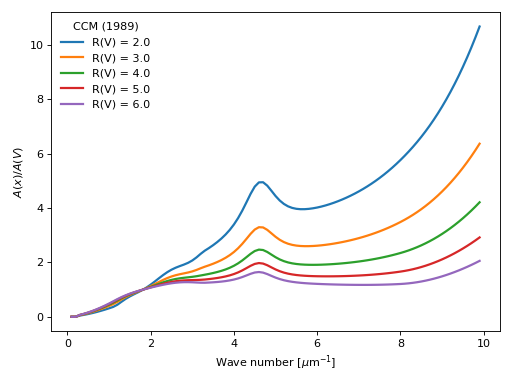

Example showing CCM89 curves for a range of R(V) values.

import numpy as np
import matplotlib.pyplot as plt
import astropy.units as u

from dustapprox.legacy_extinction import CCM89

#define the wave numbers
x = np.arange(0.1, 10, 0.1)    # in microns^{-1}
lamb = 1. / x * u.micron

c = CCM89()
Rvs = np.arange(2, 6.01, 1.)

for Rv in Rvs:
    plt.plot(x, c(lamb, Rv=Rv), label=f'R(V) = {Rv:0.1f}', lw=2)
plt.xlabel(r'Wave number [$\mu$m$^{-1}$]')
plt.ylabel(r'$A(x)/A(V)$')
plt.legend(loc='upper left', frameon=False, title='CCM (1989)')
plt.tight_layout()
plt.show()

(Source code, png, hires.png, pdf)

__init__()[source]#

class ExtinctionLaw[source]#

Bases: object

Template function class

name#

name of the curve

Type:: str

Parameters:: lamb (float, np.array, Quantity) – wavelength. User should prefer a Quantity which provides units.
Returns:: val – expected values of the law evaluated at lamb
Return type:: ndarray

__init__()[source]#

isvalid(*args, **kwargs)[source]#

Check if the current arguments are in the validity domain of the law Must be redefined if any restriction applies to the law

Return type:: bool

class F99[source]#

Bases: ExtinctionLaw

Fitzpatrick (1999, PASP, 111, 63) [1999PASP..111…63F]_

R(V) dependent extinction curve that explicitly deals with optical/NIR extinction being measured from broad/medium band photometry. Based on fm_unred.pro from the IDL astronomy library

Parameters:

lamb (float or ndarray(dtype=float) or Quantity) – wavelength at which evaluate the law. units are assumed to be Angstroms if not provided
Av (float, optional) – desired A(V) (default 1.0)
Rv (float, optional) – desired R(V) (default 3.1)
Alambda (bool, optional) – if set returns +2.5*1./log(10.)*tau, tau otherwise

Returns:

r – attenuation as a function of wavelength depending on Alambda option +2.5*1./log(10.)*tau, or tau

Return type:

float or ndarray(dtype=float)

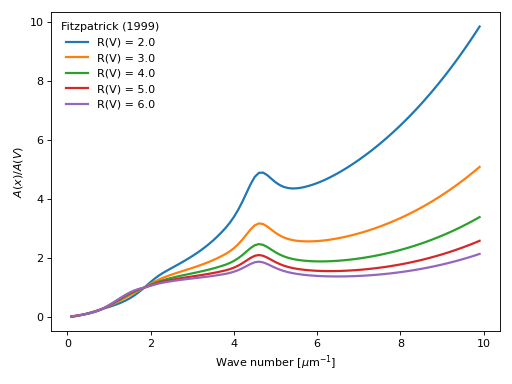

Example showing F99 curves for a range of R(V) values.

import numpy as np
import matplotlib.pyplot as plt
import astropy.units as u

from dustapprox.legacy_extinction import F99

#define the wave numbers
x = np.arange(0.1, 10, 0.1)    # in microns^{-1}
lamb = 1. / x * u.micron

c = F99()
Rvs = np.arange(2, 6.01, 1.)

for Rv in Rvs:
    plt.plot(x, c(lamb, Rv=Rv), label=f'R(V) = {Rv:0.1f}', lw=2)
plt.xlabel(r'Wave number [$\mu$m$^{-1}$]')
plt.ylabel(r'$A(x)/A(V)$')
plt.legend(loc='upper left', frameon=False, title='Fitzpatrick (1999)')
plt.tight_layout()
plt.show()

(Source code, png, hires.png, pdf)

Note

this function assumed the wavelength in Anstroms if lamb is not a Quantity.

__init__()[source]#
